ED Electro Hydraulic Thrusters

We are a professional manufacturer of ED electric hydraulic thrusters, Voltage and frequency: three-phase AC 380V/50(60)Hz, our company can also provide other products with different frequencies and voltages, please inform before ordering;

Send Inquiry

Description

Electro Hydraulic Thrusters made by Golden Hoop are used as the driving device for all kinds of block brakes and disc brakes, and can also be used for the driving control of various industrial valves, gates, directional swing and rotation (<90°) devices (mechanisms) and clamping devices.

Conditions of use:

1. Ambient temperature: -20℃~+50℃, using DB-25 hydraulic oil, below -20℃ using YH-10 aviation hydraulic oil, without heater, using DN-25 hydraulic oil, must be equipped with heater.

Continuous work S1, intermittent work S3-60%;

2. Voltage and frequency: three-phase AC 380V/50Hz

Our company can also provide other products of different frequencies and different voltages, when necessary, please negotiate to order;

Three-phase AC asynchronous motor, in line with GB755-2008, insulation grade;

Class F, electrical protection level: IP65;

3. Cable: the cable wire can be up to 4*2.5m㎡;

4. Efficient anticorrosive products: used in the air with corrosive medium and high relative humidity, and may produce condensate water, motor using vacuum injection stator, coating using special anticorrosive paint series products can provide anticorrosive products, users need to contact the company.

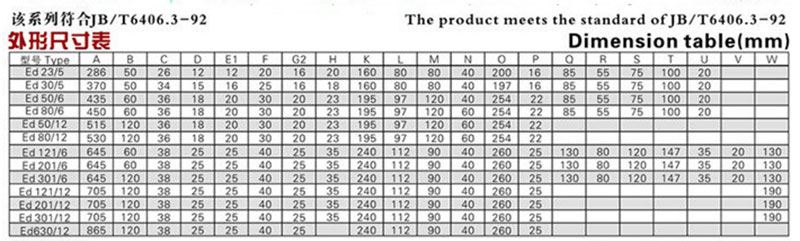

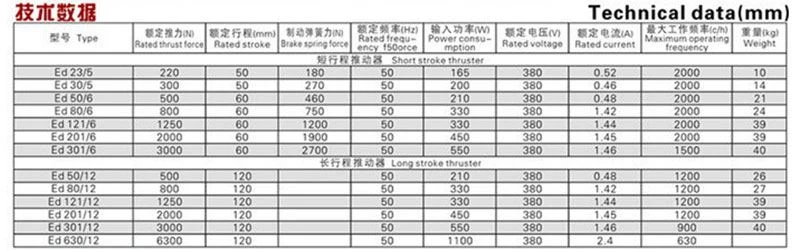

Technical Parameters:

12-yip
