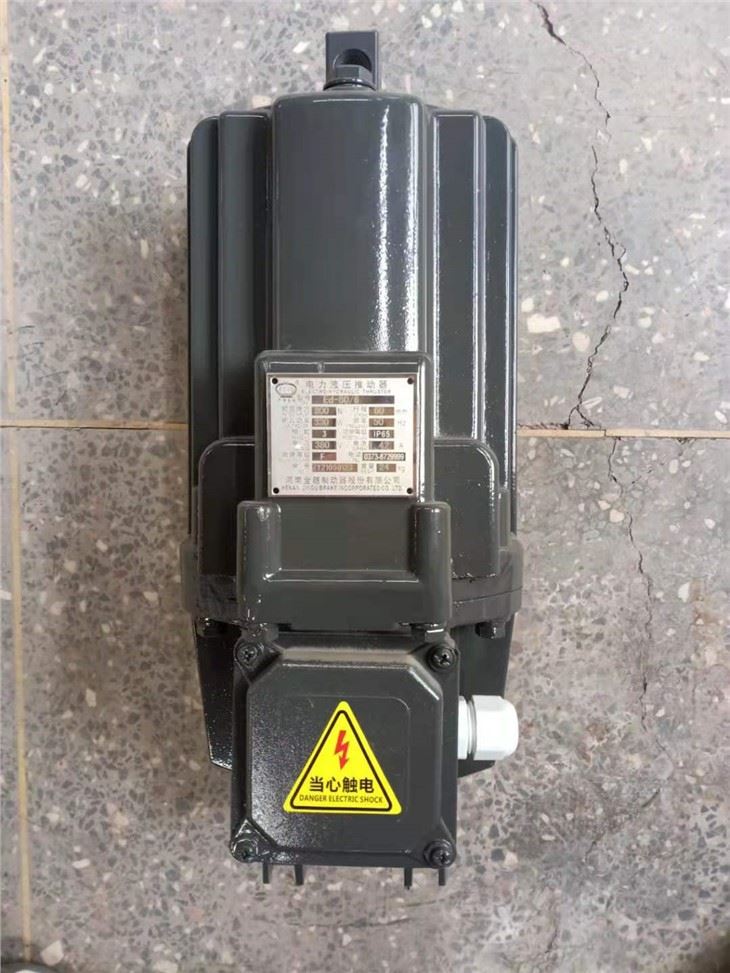

ED-80 Electric Hydraulic Thruster

Ed series pusher type exclusively introduces the full set of design and manufacturing technology of the former West German EMG company to manufacture, and meets the German DIN15430 and JB/T10603-2006 standards. The parts of Ed series thrusters are all processed by CNC machining center. From processing to assembly, strict technology, perfect testing, reliable performance and life test ensure the best performance of the whole machine.

◆

Fully sealed single push rod structure with aluminum alloy shell, beautiful appearance, light weight, complete functions, excellent performance, complete varieties and specifications;

◆The motor is of non-oil-immersed structure, F-class insulation, good heat resistance and long life;

◆The motor junction box cover is sealed, and the cable stuffing box is used for wire entry, which is firm and reliable, and the electrical protection level is IP65;

◆Both the motor shaft and the push rod have undergone special surface treatment, which greatly prolongs the life of the seal;

◆The transmission parts are all double-sealed structures, and the sealing is reliable;

◆There is a balance air chamber on one side of the Ed thruster cylinder housing, which can be installed and used within the range of 0-180°.

Ed series electro-hydraulic pusher attachment

◆The upper and lower limit switches can be set at the same time;

◆Ascending limit switch: It can indicate whether the brake is normally opened, whether the push rod is pushed to the specified position, etc.

◆Lower limit switch: It can indicate whether the brake is normally closed, whether the push rod returns to the specified position, etc.;

◆The rise delay valve and the fall delay valve or the rise and fall delay valve can adjust the specific delay value required within the rated operating time to 10-20 times the rated operating time;

◆The short-stroke pusher can be equipped with built-in brake spring (C-spring), return spring (W-spring), buffer spring (d-spring);

◆Add a heater, and the ambient temperature at the place of use is lower than -20°C. A heater can be added as needed.

special requirements;

◆According to the needs, it can provide different voltages and different frequency grades of pushers;

The three-proof motor with special treatment is suitable for the requirements of "TH" type, "AH" type, and mixed type.
