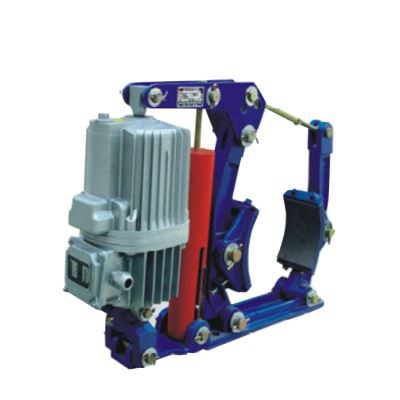

YWL Series Electric Hydraulic Drum Brake

YWL Series Electric Hydraulic Drum Brake Brake installation dimensions conform to: DIN15435 and JB/T7021-2006 standards, and technical requirements conform to JB/T6406-2006 standards. Conditions of Use: Environment temperature: -20℃-50℃; There should be no flammable, explosive and corrosive...

Send Inquiry

Description

Brake installation dimensions conform to: DIN15435 and JB/T7021-2006 standards, and technical requirements conform to JB/T6406-2006 standards.

Conditions of Use:

Environment temperature: -20℃-50℃;

There should be no flammable, explosive and corrosive gases in the surrounding working environment, otherwise anti-corrosion products should be used;

The relative humidity of the air is not more than 90%;

The altitude of the place of use conforms to GB755-2000.

YW L brake

Model		Braking torque(Nm)	Clearance(mm)	M	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	n	Weightkg)
Brake Model	Thruster Model
YW-L200/E23	Ed23/5	200	0.6	165	215	70	160	200	14	180	100	165	75	710	160	55	145	10	46
YW-L200/E30	Ed30/5	300				255					210				705				52
YW-L250/E23	Ed23/5	260	0.8	225	310	90	160	250	18	230	110	200	100	795	190	65	180	12	53
YW-L250/E30	Ed30/5	380												790					61
YW-L250/E50	Ed50/6	700					190				140			865					69
YW-L315/E23	Ed23/5	290	1	255	350	110	160	315	18	275	120	245	135	895	230	80	220	14	72
YW-L315/E30	Ed30/5	410												890					78
YW-L315/E50	Ed50/6	720					190				145			970					81
YW-L315/E80	Ed80/6	1200																	92
YW-L400/E30	Ed30/5	390	1.25	280	370	140	160	400	22	340	160	310	150	955	280	100	270	14	98
YW-L400/E50	Ed50/6	750			440		190							1075					102
YW-L400/E80	Ed80/6	1250																	114
YW-L400/E121	Ed121/6	1900					240							1065					132
YW-L500/E50	Ed50/6	900	1.25	350	435	180	190	500	22	400	200	365	185	1245	340	130	325	21	154
YW-L500/E80	Ed80/6	1650																	159
YW-L500/E121	Ed121/7	2500					240							1235					176
YW-L500/E201	Ed201/7	4100																	181

Application:

Electro-hydraulic drum brakes can be widely used for various mechanical deceleration and various belt transportation, port loading and unloading, lifting, metallurgy, mining and construction machinery stop/brake.

Our Factory:

FAQ:

Q: What's your MOQ?

A: 1 Set;

Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

Our service:

1. One Year Warranty;

2. 24-hours Online Service;

3. Free Training for Operators;

4. Lifelong Free Consulting Service.
