The rotating element in a disc Brakes's friction pair is a metal disc working on its end faces, called a Brakes disc. The friction elements clamp the disc from both sides, producing braking. The fixed element has various structural forms, and SBD-C Industrial Safety Brakes can generally be categorized as caliper disc and full disc.

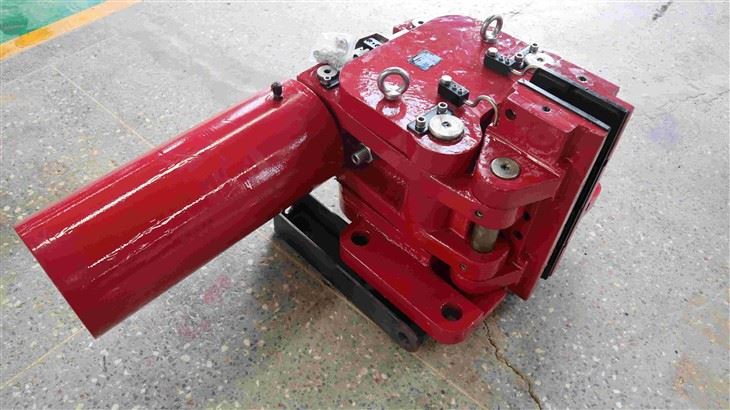

SBD-C Industrial Safety Brakes are hydraulically controlled, with the main components including the Brakes disc, wheel cylinder, caliper, and oil pipe. SBD-C Industrial Safety Brakes offer rapid heat dissipation, light weight, simple construction, and easy adjustment. They are particularly resistant to high temperatures under high loads, provide stable braking, and are resistant to mud and water intrusion. SBD-C Industrial Safety Brakes apply force along the disc, preventing bending moments on the Brakes axis and resulting in a small radial dimension.



Model Signifcance







---



SBD-C Industrial Safety Brakes

Installation diagram

• Braking torque:M=μ×d1×F(Nm)
• In it:μ-the value of friction coefficient μ=0.35

           d1-disc friction diameter d1=D-220(mm)

           F-total clamp force(KN)

• Notes:1)D-Brakes disc diameter for D≥Φ1800(mm)

               2)d2-max.allowable drum or hub diameter d2=D-500(mm)



Brakes type	Rated clamp force (KN)	Braking force (KN)	Cylinder pressure (bar)	Oil volure (ml)	Released clearance (mm)	Dimensions (mm)			Weight (kg)
						A max	A1	D
SBD250-C	250	180	80	275	1~2	595	378	≥Φ1800	660
SBD365-C	365	262	80	275	1~2	790	570	≥Φ1800	720
SBD425-C	425	306	95	275	1~2	790	570	≥Φ1800	730

The original types of SBD-C series safety Brakess are SBB.

Friction coefficient:Static 0.4, dynamic 0.35.

Note:The size of the specific type and structure should be retained.



When selecting and using the SBD-C series brake, there are several key points to consider:

Identify application requirements: Select an appropriate model (such as the SBD250-C, SBD365-C, etc.) based on the equipment type, load, operating frequency, and required braking torque. Be sure to confirm that the braking force and brake disc size match your equipment requirements.

Supporting hydraulic station: This brake requires hydraulic actuation for release, so a suitable hydraulic station is required. When ordering, specify the specific model of the hydraulic station or consult with the manufacturer.

Pay attention to the operating environment: Although the brake is highly adaptable to the environment, it is still necessary to ensure that the ambient temperature, humidity, and other conditions on site are within their rated operating range.

Utilize safety options: For equipment with a high degree of automation or extremely high safety requirements, it is strongly recommended to configure brake opening limit switches and pad wear limit switches. These switches provide real-time feedback to the control system on the brake status (such as whether it is opening normally or whether the friction pads need replacement), enabling predictive maintenance and interlocking safety protection to prevent operation during fault conditions.

---

---



After Sales Service:
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
