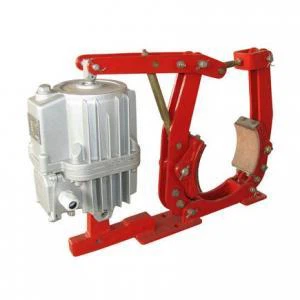

Crane hoist drum brake：

Thrusters brake is a device used to retard the speed of moving machinery and to stop it accurately to the desired position. We offer a wide range of international standard Thrusters Brake at very affordable market price.

Model meaning:

Conditions of Use:

Ambient temperature -20° C ~ +50° C

The relative humidity of the air is not more than 90%;

There shall be no flammable, explosive or corrosive gases in the surrounding working environment;

The altitude of the place of use is in accordance with GB755-2008;

Outdoor rain and snow erosion or anti-corrosive gases and media should be made of anti-corrosion products.

Operation:

The braking pressure to the shoe is transmitted from the spring by mean of an extremely rigid and simple lever / tie rod mechanism. Braking is smooth and positive. The mechanism is balanced to give equal shoe clearance.

Technical Parameter:

Brake type	Thruster type	Braking torque（ Nm ）	Dimensions （ mm ）																Weight （ kg ）
			A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	G3
YWZB-100/18	YT1-18z/2	40	269	70	137	100	13	130	75	125	125	384	100	40	110	144	6	50	20
YWZB-150/25	YT1-25z/4	100	307	90	154	150	17	175	100	170	170	437	140	60	150	144	8	70	26
YWZB-200/25	YT1-25z/4	200	347	90	154	200	17	210	100	195	195	437	170	60	175	156	8	95	30
YWZB-300/25	YT1-25z/4	320	447	140	160	300	22	290	130	275	275	590	240	80	250	210	10	125	63
YWZB-300/45	YT1-45z/5	630	459	140	178	300	22	290	130	275	275	590	240	80	250	210	10	125	70
YWZB-300/90	YT1-90z/8	750	510	140	210	300	22	320	130	275	275	690	240	80	250	210	10	125	80
YWZB-400/45	YT1-45z/5	1000	564	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	120
YWZB-400/90	YT1-90z/8	1600	595	180	220	400	22	370	180	350	350	750	320	130	325	275	12	190	130
YWZB-400/125	YT1-125z/10	2200	670	180	254	400	22	370	180	350	350	847	320	130	325	279	12	190	167
YWZB-500/90	YT1-90z/8	2500	670	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZB-500/125	YT1-125z/10	2650	692	200	254	500	22	440	200	405	405	940	400	150	380	310	16	225	220
YWZB-500/180	YT1-180z/12	3000	692	200	254	500	22	440	200	405	405	946	400	150	380	310	16	225	235
YWZB-600/90	YT1-90z/8	3200	805	240	315	600	26	555	220	500	500	1087	475	170	475	400	18	250	400
YWZB-600/125	YT1-125z/10	4500	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	415
YWZB-600/180	YT1-180z/12	5000	827	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	430
YWZB-700/180	YT1-180z/12	8000	957	280	390	700	34	600	270	575	575	1248	550	200	540	495	25	315	500
YWZB-800/180	YT1-180z/12	10000	1094	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	720
YWZB-800/320	YT1-320z/12	12500	1155	320	436	800	34	680	320	677	677	1389	600	240	620	556	25	367	885
