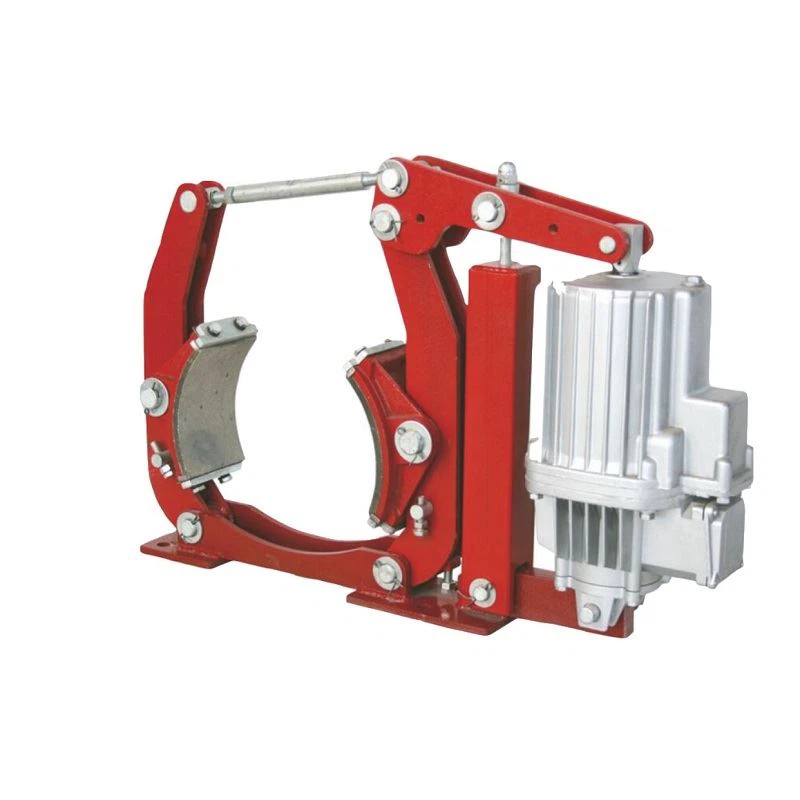

Drum brake: YWZ4B Power Hydraulic Drum Brake

Hydraulic drum brake made of alloy steel are used to control cranes and material lifting systems. The drum brake is known for its compact shape and is favored for its excellent performance level. The photosensitive drum of this assembly moves in a counterclockwise direction. Designed by skilled personnel, this product is praised for its low maintenance cost, long service life, sturdy structure, cost-effectiveness, easy installation and application-specific structure. Its standard quality has been verified according to its performance level, design, material type, manufacturing technology and durability. We are an excellent exporter and manufacturer of rotating drum brakes.

Standards compliant:

The installation and braking torque parameters of this series of brakes conform to the JB/ZQ4388-1997 standard, and the technical requirements conform to the JB/T6406-2006 standard.

Main feature:

The swing hinge points are mainly lubricated bearings, which have high transmission efficiency and do not need lubrication.

There are two special installation forms: riveting type and plug-in type (order).

Conditions of Use

Ambient temperature: -20℃~+50℃;

The relative humidity of the air is not more than 90%;

Use an altitude that complies with GB755-2000.

The surrounding environment may not be flammable, explosive and corrosive gas, otherwise anti-corrosion products should be used.

Brake type	Thruster type	Braking torque	Clearance	Weight
YWZ4B-150/E30	Ed30/5	120	0.7	29
YWZ4B-200/E23	Ed23/5	200		31
YWZ4B-200/E30	Ed30/5	230		34
YWZ4B-300/E30	Ed30/5	320	0.7	65
YWZ4B-300/E50	Ed50/6	630		78
YWZ4B-300/E80	Ed80/6	750		79
YWZ4B-400/E50	Ed50/6	1000	0.8	128
YWZ4B-400/E80	Ed80/6	1600		140
YWZ4B-400/E121	Ed121/6	2000		155
YWZ4B-500/E121	Ed121/6	2500	0.8	210
YWZ4B-500/E201	Ed201/6	3600
YWZ4B-600/E121	Ed121/6	3200	0.8	390
YWZ4B-600/E201	Ed201/6	5000
YWZ4B-700/E201	Ed201/6	8000	0.8	465
YWZ4B-700/E301	Ed301/12	8650		466
YWZ4B-800/E301	Ed301/12	12500	0.9	885

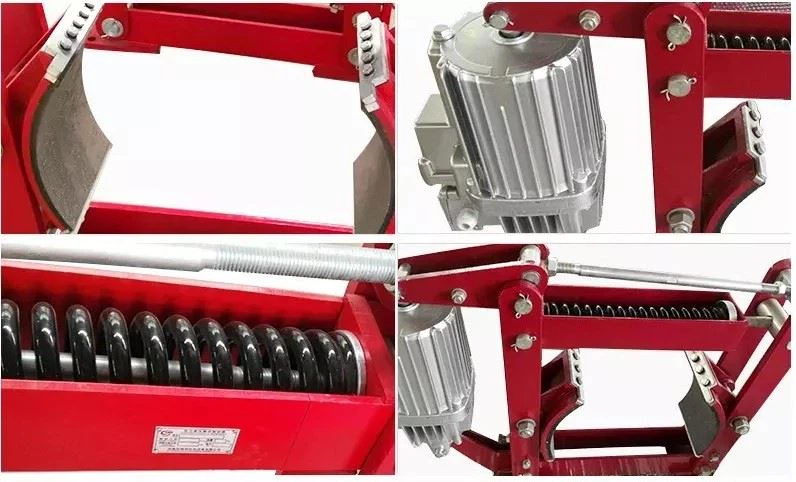

Details Images
