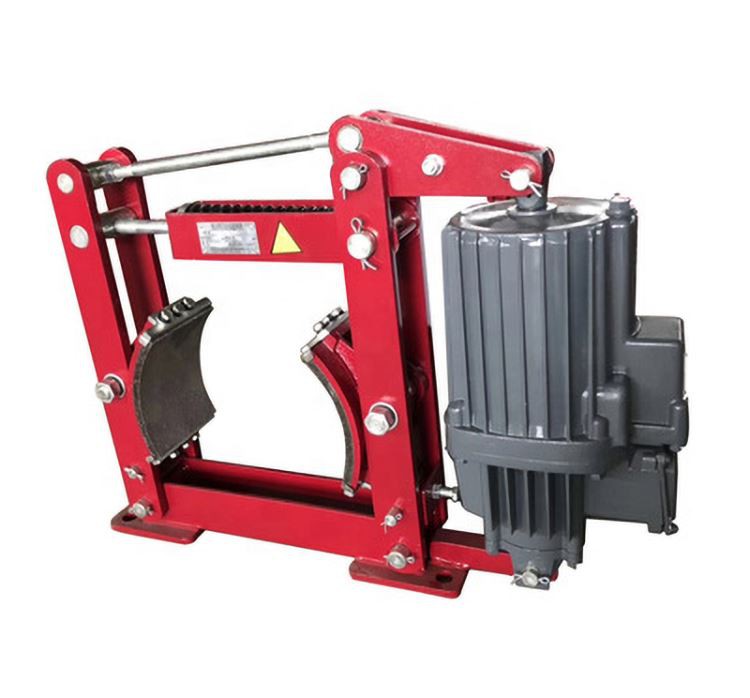

Electro-Hydraulic Block Brake (YWZ-100/18, YWZ200/25)

We have strong technical strength, a systematic technical team, professional services, and a complete product range of Crane Electric Hydraulic Drum Brakes, Gantry Crane Brake System, Electro-hydraulic Block Brake. We have a high-quality workforce, which is the source of our company's sustained and rapid development. In the future, we will take the building of a national brand as our own responsibility, make full use of our own brand and technical resources, and strive to become a first-class brand. Our company continuously strengthens internal standard management.

application

●The two-stage delay electro-hydraulic drum brake can be widely used in large and medium-sized outdoor cranes, and has excellent deceleration braking and storm braking performance. It can also be used for large and medium-sized special cranes to achieve smooth deceleration braking and maintaining braking. The actual braking performance of these series of products is also reflected in the belt transport vehicles.

● EYWZ series brake is a two-stage brake device. In the first braking step, a small torque (adjustable within the specified range) is applied to perform stable deceleration braking. When the body stops, the second step begins. Apply more torque (adjustable within the specified range) to achieve reliable maintenance or storm braking. The interval time between the two steps can be adjusted by the one-way throttle in the damping cylinder circuit (1-15 seconds).

Main features

●The brake lining is a clamping integrated structure, which is convenient and quick to replace.

●Interlocking shoe clearance balance device and shoe automatic aligning device, constantly balance the brake shoe clearance on both sides without adjustment, and completely avoid one brake pad sticking to the brake wheel.

●The main hinge point is equipped with self-lubricating bearings, which has high transmission efficiency and long service life.

No lubrication is required during operation.

●Ed series thrusters have the characteristics of flexible action and long service life.

● The brake is closed when the power is off (Fail-Safe principle). Brake with spring force. Live by propellers.

Standards compliant

●The size and braking torque parameters of this series of brakes conform to JB/T6406--2006 and DIN15435 standards.

●The thruster equipped is Ed series electro-hydraulic thruster that conforms to DIN15430 standard.

Model		Braking torque(Nm)			D	A	E	H	h1	G1	G2	i	k	n	d	b	C	Weight
Brake Model	Thruster Model	First stage braking	Second stage braking	Total braking torque														(kg)
EYWZ-E200/E23	Ed23/5	35-80	80-150	230	200	490	190	520	160	165	265	55	145	10	14	70	160	42
EYWZ-E200/E30	Ed30/5	80-160	80-155	315	200	500	190	520	160	165	265	55	145	10	14	70	160	46
EYWZ-E200/E50	Ed50/6	120-250	120-250	500	200	535	190	560	160	165	265	55	145	10	14	70	190	56
EYWZ-E250/E50	Ed50/6	160-315	160-315	630	250	580	225	590	190	200	300	65	180	12	18	90	190	90
EYWZ-E315/E50	Ed50/6	200-400	200-400	800	315	655	270	620	230	245	330	80	220	12	18	110	190	123
EYWZ-E315/E80	Ed80/6	315-630	315-630	1260	315	655	270	620	230	245	330	80	220	12	18	110	190	126
EYWZ-E400/E80	Ed80/6	315-630	315-630	1260	400	740	318	720	280	310	420	100	270	14	22	140	190	150
