Pneumatic Drum Brake

Overview: YW series pneumatic drum brakes are mainly used for the braking of various mechanisms in lifting, transportation, metallurgy, mining, ports, construction and other machinery; its installation dimensions conform to DIN15435 and JB/T7021-2006 standards, and technical requirements conform to JB /T6406-2006 standard.

Conditions of Use:

Ambient temperature: -20℃ -50℃.

There should be no flammable, explosive and corrosive gases in the surrounding working environment, otherwise anti-corrosion products should be used.

The relative humidity of the air is not more than 90%.

Working pressure:

0.5-0.7MPa

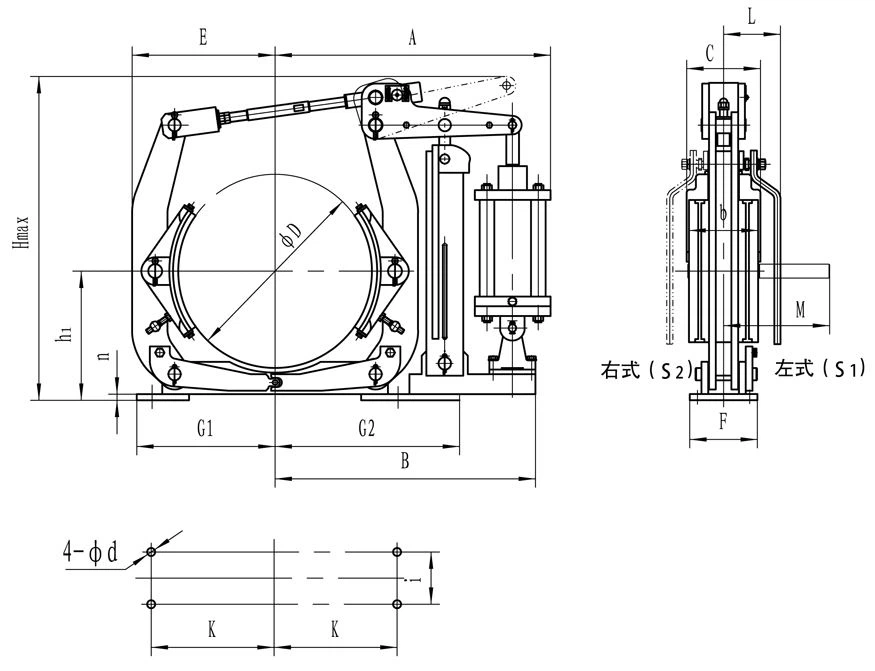

Model		Braking torque(Nm)	Clearance	B	A	b	C	D	d	E	F	G1	G2	Hmax	h1	i	K	M	n	L	Weight	Air inlet size
Brake	Matching cylinder		(mm)																		(kg)
YW-160/032x60	QGA32x60MP2JY	80-160	1	324	332	65	47	160	14	145	85	145	195	440	132	55	130	105	8	145	24	M10x1
YW-200/Q32X60	QGA32x60MP2JY	100-335		401	372	70	47	200	14	175	90	165	255	500	160	55	145	118	10	150	26.5
YW-250/Q32X60	QGA32x60MP2JY	125-350	1	473	437	90	47	250	18	205	110	200	290	585	190	65	180	149	12	180	36	M10x1
YW-250/Q40X60	QGA40x60MP2JY	300-550			440		54															M14x1.5
YW-315/032x60	QGA32x60MP2JY	150-450	1.25	528	492	110	47	315	18	255	115	245	330	585	230	80	220	174	17	170	55.5	M10x1
YW-315/040x60	QGA40x60MP2JY	315-710			495		54														56	M14x1.5
YW-315/050x60	QGA50x60MP2JY	630-1250			501		66														59.5
YW-400/Q32X60	QGA32x60MP2JY	200-470	1.25	615	575	140	47	400	22	310	160	310	420	715	280	100	270	211	14	170	117	M10x1
YW-400/Q40X60	QGA40x60MP2JY	400-800			577		54														118	M14x1.5
YW-400/Q50X60	QGA50x60MP2JY	630-1250			585		66							775							119
YW-400/Q63X60	QGA63x60MP2JY	1000-2240			588		76														121	M18x1.5
YW-500/Q50X60	QGA50x60MP2JY	800-1600	1.25	724	682	180	66	500	22	390	180	365	535	815	340	130	325	270	21	180	155	M14x1.5
YW-500/Q63X60	QGA63x60MP2JY	1250-2500			687		76							835							170	M18x1.5
YW-500/Q80X60	QGA80x60MP2JY	2000-4000			697		96							845							174
YW-630/Q63X60	QGA63x60MP2JY	1600-3150	1.6	847	810	225	76	630	26	470	220	450	600	1035	420	170	400	330	20	185	276	M18x1.5
YW-630/Q80X60	QGA80x60MP2JY	2500-5000			820		96														280
YW-630/Q100x60	QGA100x60MP2JY	3550-7100			830		115														287	M22x1.5
YW-710/063x60	QGA63x60MP2JY	1000-3250	1.6	905	870	255	76	710	27	520	240	500	650	1135	470	190	450	372	25	220	401	M18x1.5
YW-710/080x60	QGA80x60MP2JY	2500-5600			880		96														406
YW-710/0100x60	QGA100x60MP2JY	4000-8000			890		115														517	M22x1.5
