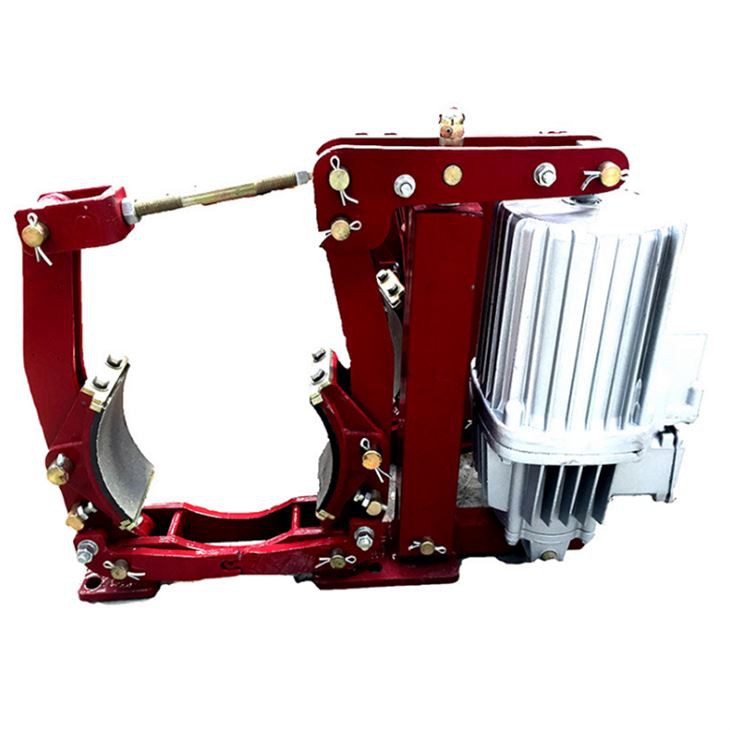

The electric hydraulic brake for overhead crane is a device that has a function of decelerating a moving member (or moving machine), stopping or maintaining its stopped state. It is a mechanical part used to stop or slow down the moving parts in the machine. Commonly known as brake pads, brake pads.

The electric hydraulic brake consists of two parts, they drive the motor and the body (centrifugal pump). The main part is composed of cover, cylinder, piston, impeller and rotating shaft.

Brake type	Thruster type	Braking torque (Nm)	Dimensions (mm)																Weight (kg)
			A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	L
YWZ9- 160/E23	Ed 23/5	80-160	430	65	160	160	14	145	85	145	195	435	132	55	130	120	8	145	33
YWZ9- 200/E23	Ed 23/5	112-200	470	80	160	200	14	175	90	165	265	500	160	55	145	140	10	150	35
YWZ9- 200/E30	Ed 30/5	140-315	470	80	160	200	14	175	90	165	265	500	160	55	145	140	10	150	38
YWZ9- 250/E23	Ed 23/5	140-250	575	100	160	250	18	205	110	200	290	570	190	65	180	160	12	180	42
YWZ9- 250/E30	Ed 30/5	180-315	575	100	160	250	18	205	110	200	290	570	190	65	180	160	12	180	45
YWZ9- 250/E50	Ed 50/6	315-500	575	100	190	250	18	205	110	200	290	570	190	65	180	160	12	180	50
YWZ9- 300/E30	Ed 30/5	250-400	590	125	160	300	18	255	115	245	330	585	225	80	220	180	12	170	70
YWZ9- 300/E50	Ed 50/6	400-630	630	125	190	300	18	255	115	245	330	585	225	80	220	180	12	170	75
YWZ9- 300/E80	Ed 80/6	630-1000	630	125	190	300	18	255	115	245	330	585	225	80	220	180	12	170	80
YWZ9- 315/E30	Ed 30/5	250-400	590	125	160	315	18	255	115	245	330	585	225	80	220	180	12	170	70
YWZ9- 315/E50	Ed 50/6	400-630	630	125	190	315	18	255	115	245	330	585	225	80	220	180	12	170	75
YWZ9- 315/E80	Ed 80/6	630-1000	630	125	190	315	18	255	115	245	330	585	225	80	220	180	12	170	80
YWZ9- 400/E80	Ed 80/6	630-1250	710	160	190	400	22	310	160	310	420	775	280	100	270	220	14	170	110
YWZ9- 400/E121	Ed 121/6	1000-2000	700	160	240	400	22	310	160	310	420	775	280	100	270	220	14	170	125

Application:

●Electro-hydraulic drum brakes can be widely used for deceleration and braking of various belt conveyors, port loading and unloading, lifting, metallurgy, mining, and construction machinery.
