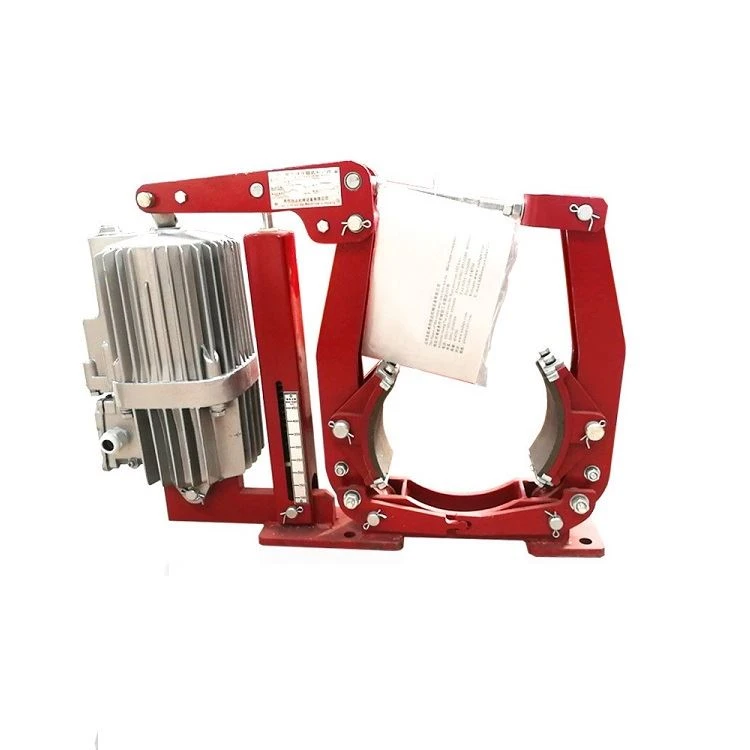

Crane Parts Electric Hydraulic Thruster Drum Brake

Description

Brakes are widely used for deceleration and parking brakes of mechanical driving devices in lifting, metallurgy, mining, ports, docks, and construction. Some additional functions can be realized by adding additional devices: the manual release device releases (opens) or closes (closes) the limit switch, which can realize the signal display or interlock protection of whether the brake is normally released or closed. It is pushed by a pusher with a descending delay valve to realize the delay closing of the brake.

The main parameter of YWZ13 series electric hydraulic thruster drum brake

Model		Braking torque	Clearance	A	B	C	D	d	E	F	Gi	G2	H/	hi	i	k	M	n	L	G3	Weight
Brake	Pusher	(Nm)	(mm)										Hmcx								(kg)
YWZ13-200/E23	Ed23/5	100-200	0.7	470	90	160	200	17	175	100	210	265	510	170	60	175	140	8	150	75	32
YWZ13-200/E30	Ed30/5	140-315														-190					43
YWZ13-300/E30	Ed30/5	250-400	8	590	140	160	300	22	255	130	295	330	605	240	80	250	180	12	170	135	65
YWZ13-300/E50	Ed50/6	400-630		630		190										-270					80
YWZ13-300/E80	Ed80/6	630-1000																			92
YWZ13-400/E50	Ed50/6	400-800	1.2	710	180	190	400	22	310	180	350	420	755	320	130	325	220	14	170	150	120
YWZ13-400/E80	Ed80/6	630-1250																			130
YWZ13-400/E121	Ed121/6	1000-2000		700		240							813/830								150
YWZ13-500/E80	Ed80/6	800-1600	1.2	810	200	240	500	22	380	200	405	535	900	400	150	380	280	16	180	205	220
YWZ13-500/E121	Ed121/6	1250-2500		800									900/920
YWZ13-500/E201	Ed201/6	2000-4000
YWZ13-600/E121	Ed121/6	1800-2800	1.3	925	240	240	600	26	470	220	500	600	1080	475	170	475	340	20	185	240	305
YWZ13-600/E201	Ed201/6	2500-4500
YWZ13-600/E301	Ed301/6	4000-6500
YWZ13-700/E201	Ed201/6	2500-5600	1.3	980	280	240	700	34	530	270	570	650	1290	550	200	540	380	25	220	300	425
YWZ13-700/E301	Ed301/6	4000-8000
YWZ13-800/E301	Ed301/12	12500	2	1230	320	240	800	34	600	310	670	830	1430	600	240	620	420	34	240	310	545

Electric hydraulic thruster drum brake drive mode

The main driving method of brake is electric hydraulic pusher, followed by AC or DC electromagnet, and a small amount of hydraulic drive and pneumatic device. Due to its advantages of low impact, low working noise, simple control, long service life, and low cost of use, electro-hydraulic pushers have become mainstream products in high-speed shaft industrial brakes. In the field of safety brakes, hydraulically driven brakes are the main ones.

Send your Inquiry Details in the Below

If you would like us to provide an accurate quote within 12 hours, please write down the following information:

1.Brake torque value rangeis_____N.m

2.Which kind of machine doesthebrakewill beinstalled on?(Cranes or Winch or other machines?

3. What is anti-corrosion level of brake painting and standard parts?

4. Power source is____v,____hz, ____phase.(Customized from 220v-480v, 50HZ/60HZ, 3Phase/Single Phase).

5.Please notice us additional devices on brakes if you need.

6. Your contact information. Both Email and phone number are essential.
