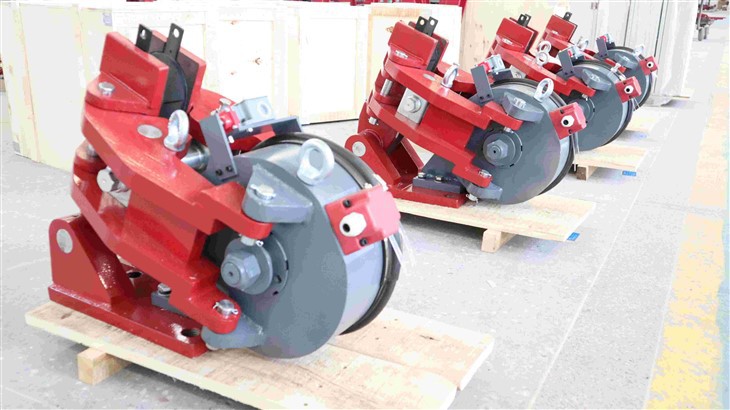

Failure Protecton Disc Brakes

MAIN FEATURE

• Small size and light weight. Asbestos free brake pad, green and environmental protection, convenient and fast installation and replacement.
• Compact structure, large braking torque, same as working brake.
• In case of overspeed, it is used as emergency brake, and the response time of static brake is short under normal conditions.
• The installation tolerance is large, and the maximum value of end face runout of brake disc is ±0.2mm.Perpendicularity deviation of base relative to disc:±4‰.



OPERATING CONDITION

• Ambient temperature:-20℃~+50℃
• There shall be no inflammable or explosive gas in the surrounding working environment.
• Relative humidity:the relative humidity of the air is not more than 90%
• The altitude of the place of use conforms to GB755-2019
• Outdoor rain and snow erosion or corrosive gases and media should use anti-corrosion products.





TECHNICAL DATA AND DIMENSIONS OF 5SE,450SE,4SE,3SE

Basic parameters					Dimensions(mm)																Power consumption		response time	side setback	weight (kg)
diameter of plateB mm	Rated thrust force N	Rated braking moment Nm		The shaft is subject to maximum radial force	A	C	D	E	F	G	H	I	J	K	L	O	P	Q	R	T	starting power	maintained power
315	5SE 1650 450SE 3340 4SE 5880 3SE 10170	5SE	190	5SE A machine 1650 two machine 740     450SE A machine 3340 two machine 1500     4SE A machine 5580 two machine 3440     3SE A machine 10170 two machine 6965	159	99	5SE 15     450SE 15       4SE 20     3SE 25	5SE 200     450SE 200     4SE 260     3SE 360	5SE 245     450SE 245     4SE 355     3SE 490	5SE 155     450SE 155     4SE 85     3SE 80	5SE 280     450SE 280     4SE 343     3SE 435	5SE 87.5     450SE 87.5     4SE 117.5     3SE 117.5	5SE 200     450SE 200     4SE 270     3SE 270	5SE 15     450SE 15     4SE 22     3SE 22	5SE 15     450SE 15     4SE 20     3SE 20	5SE 13°     450SE 13°     4SE 17°     3SE 20°	5SE 90     450SE 90     4SE 122     3SE 128	5SE 42     450SE 42     4SE 57     3SE 68	5SE 120     450SE 120     4SE 165     3SE 165	5SE 175     450SE 175     4SE 210     3SE 210	5SE 475     450SE 1000     4SE 1000     3SE 1095	5SE 14     450SE 44     4SE 42     3SE 58	5SE 0.15     450SE 0.15     4SE 0.2     3SE 0.2	0.7	5SE 34     450SE 34     4SE 77     3SE 120
		450SE	380		159	99
355		5SE	220		165	119
		450SE	450		165	119
400		5SE	260		172	142
		450SE	510		172	142
450		5SE	300		179	167
		450SE	600		179	167
		4SE	950		225	133
		3SE	1600		287	103
500		5SE	340		187	192
		450SE	680		187	192
		4SE	1120		232	157
		3SE	1820		295	127
560		5SE	390		195	223
		450SE	770		195	223
		4SE	1270		241	185
		3SE	2100		305	155
630		5SE	460		206	258
		450SE	900		206	258
		4SE	1500		251	218
		3SE	2500		317	188
710		450SE	1030		218	298
		4SE	1750		262	256
		3SE	2900		331	226
800		450SE	1180		231	344
		4SE	2000		274	299
		3SE	3350		346	269

 Note:The brake must be equipped with special power supply,please refer to the supporting power supply for details.



---

---
