Technical parameters:
Windproof capacity of a single windproof iron brake (converted into horizontal force F)
F=fxN wheels (N wheels are wheel pressure; f is friction coefficient = 0.46).
Number of units to be installed
S=2.5Pw/F (Pw is wind load = CKhqA) Refer to the crane design specifications.
Conditions of use:
Ambient temperature: -20℃ - 50℃
Generally used for three-palm AC power supply: 380V, 50Hz.
The altitude of the use location complies with the relevant provisions of G8755-2000.
Anti-corrosion products should be used for outdoor rain and snow erosion or corrosive gases and media.

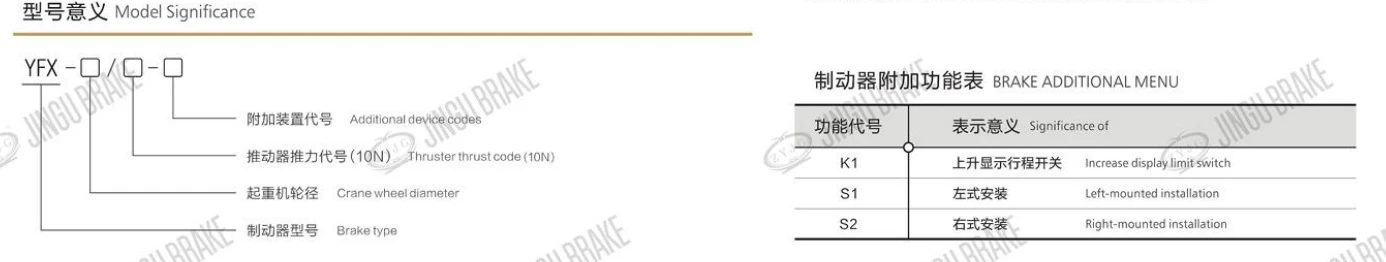

Model meaning

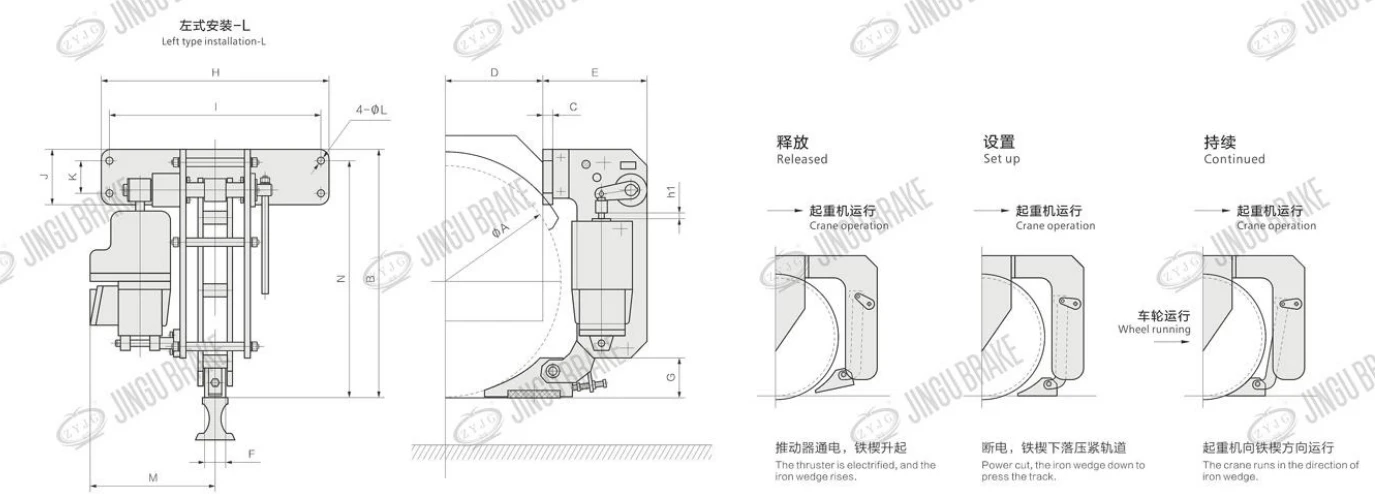

Installation and dimensions
单位：(mm)
| 尺寸
|
ΦA |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
h1 |
匹配推动器 型号 |
重量 (kg) |
|
YFX-350/80 |
350 |
640 |
20 |
180 |
310 |
60 |
55 |
520 |
460 |
165 |
100 |
18 |
360 |
607 |
8 |
Ed80/6ws |
129kg |
|
YFX-500/80 |
500 |
640 |
20 |
240 |
310 |
60 |
55 |
480 |
430 |
165 |
100 |
18 |
360 |
605 |
8 |
Ed80/6ws |
129kg |
|
YFX-550/80 |
550 |
640 |
20 |
240 |
310 |
60 |
55 |
480 |
430 |
165 |
100 |
18 |
360 |
605 |
8 |
Ed80/6ws |
129kg |
|
YFX-600/80 |
600 |
760 |
25 |
260 |
315 |
60 |
120 |
650 |
600 |
170 |
100 |
22 |
360 |
725 |
8 |
Ed80/6ws |
146kg |
|
YFX-630/80 |
630 |
760 |
25 |
260 |
315 |
60 |
120 |
650 |
600 |
170 |
100 |
22 |
360 |
725 |
8 |
Ed80/6ws |
146kg |
|
YFX-700/80 |
700 |
760 |
25 |
300 |
315 |
70 |
120 |
700 |
650 |
170 |
100 |
22 |
360 |
725 |
8 |
Ed80/6ws |
149kg |
|
YFX-710/80 |
710 |
760 |
25 |
300 |
315 |
70 |
120 |
700 |
650 |
170 |
100 |
22 |
360 |
725 |
8 |
Ed80/6ws |
149kg |
|
YFX-800/80 |
800 |
950 |
25 |
300 |
355 |
70 |
120 |
700 |
650 |
170 |
100 |
22 |
395 |
915 |
8 |
Ed80/6ws |
164kg |
Note:
- Electro-hydraulic thruster wiring box can be installed turning 90 degree,and also can be installed in specified position according to customer's requirement.
- The electric hydraulic windbreak wedge brake is divided into left type and right type. From the main view above,the pusher is left type on the left and right type on the right.
- Due to different specifications, the specific structure may differ from the above figure.
- The size of the specific type and structure should be retained.
